electronic conspicuity

See more relevant traffic in one box.

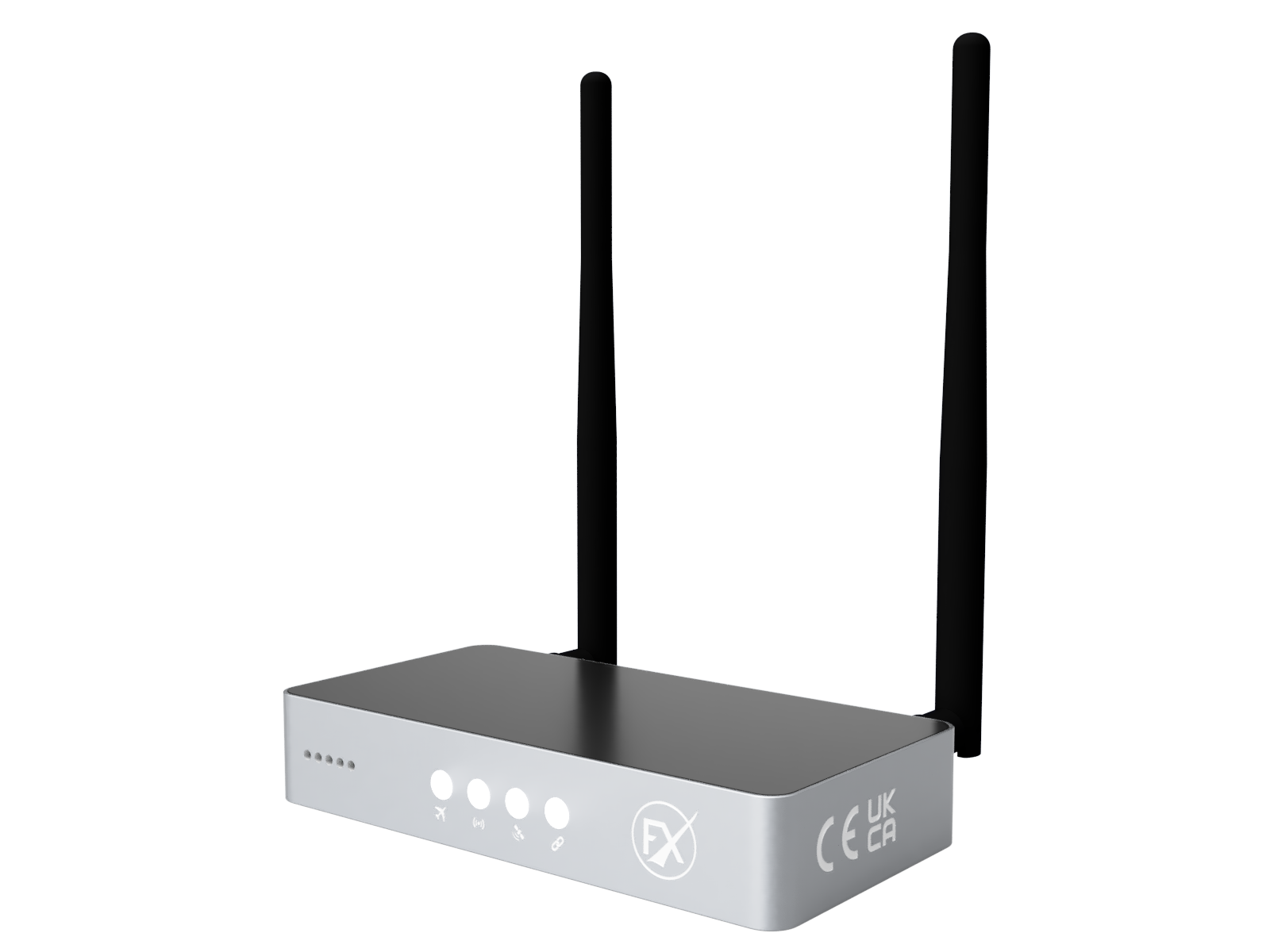

PilotAware FX combines multiple advanced features into a streamlined Electronic Conspicuity platform designed for modern GA cockpits. It brings together traffic awareness, flexible connectivity, broad compatibility and a simpler ownership experience in one refined unit.
Buy  PilotAware FXExplore what FX can do

Multiple traffic techonolgies
One platform built to combine more of the traffic picture.

Flexible Cockpit Integration
Designed for EFBs, RS232 displays and FLARM.

Compact Hardware
Weighing just 135g and requiring just 1.5W of power.

ADS-L Compliant
One Box.
More Awareness
=
Traffic Detection

Multiple traffic inputs. One clearer picture.

PilotAware FX combines multiple traffic sources into one clearer picture. It can detect ADS-B, ADS-L and PilotAware transmissions directly, while FLARM, Mode-S/3D and other timestamped traffic can be added through ATOM, SkyGRID and iGRID where available. The result is a broader view of surrounding traffic on your favourite EFB or compatible RS232 avionics display.
ADS-B
CAP1391
ADS-L (O-BAND)
PilotAware
FLARM Direct device integration or network
FANET+ Network enhanced
Mode-S/3D Network enhanced
Supported third-party traffic Other supported services
PilotAware FX
PilotAware FX

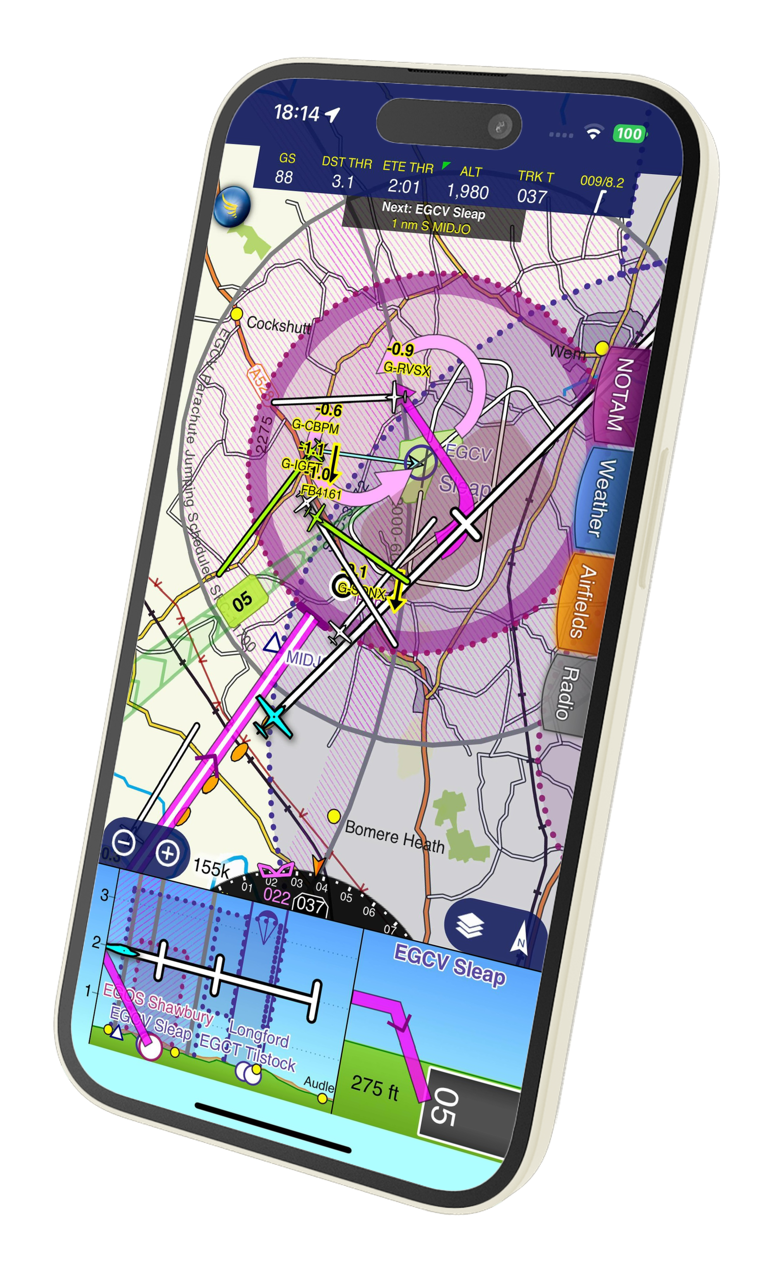

Moving map apps showing traffic Wi-Fi
Moving map apps

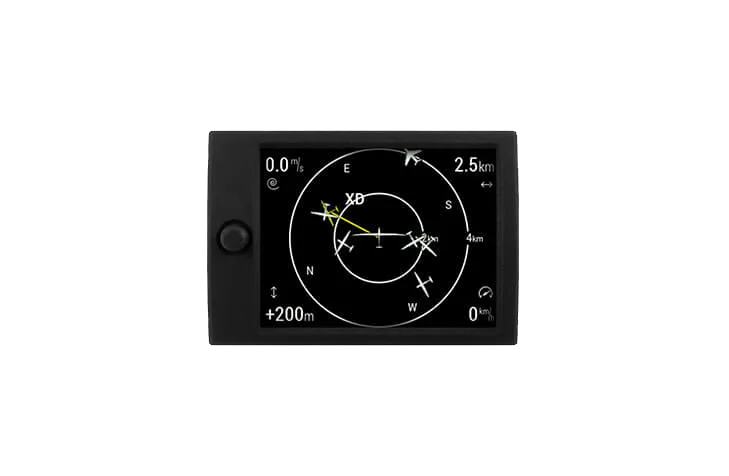

Selected avionics display RS232
Selected avionics
Traffic inputs
ADS-B
CAP1391
ADS-L (O-BAND)
PilotAware
FLARM
FANET+
Mode-S/3D
Supported traffic
PilotAware FX
PilotAware FX
Moving map apps showing traffic Wi-Fi
Moving map apps
Selected avionics display RS232
Selected avionics
Direct to FX Enhanced traffic sources Wi-Fi output RS232 output

See and be seen at a glance

A simplified summary of what PilotAware FX can display, and where compatible connections can help you be seen more effectively.

Traffic type Seen on FX Helps you be seen
ADS-B Yes With Mode-S*
CAP1391 Yes No
ADS-L (O-BAND) Yes Yes
PilotAware Yes Yes
FLARM Yes† With FLARM†
FANET+ Yes** No
Mode-S/3D Yes** No
Supported third-party traffic Yes** No

* FX can support ADS-B Out when connected to a compatible Mode-S ES transponder using the RS232 GPS SIL 0 feed.

† FLARM visibility can be supported when a compatible FLARM device is connected to FX.

** Network enhanced where available.

The Grid network

Connected services that extend traffic awareness

PilotAware FX can use connected GRID services to add traffic information beyond what the unit receives directly over the air. These services support different methods of extending coverage depending on connectivity and location, and are included within the PilotAware ecosystem at no extra cost.

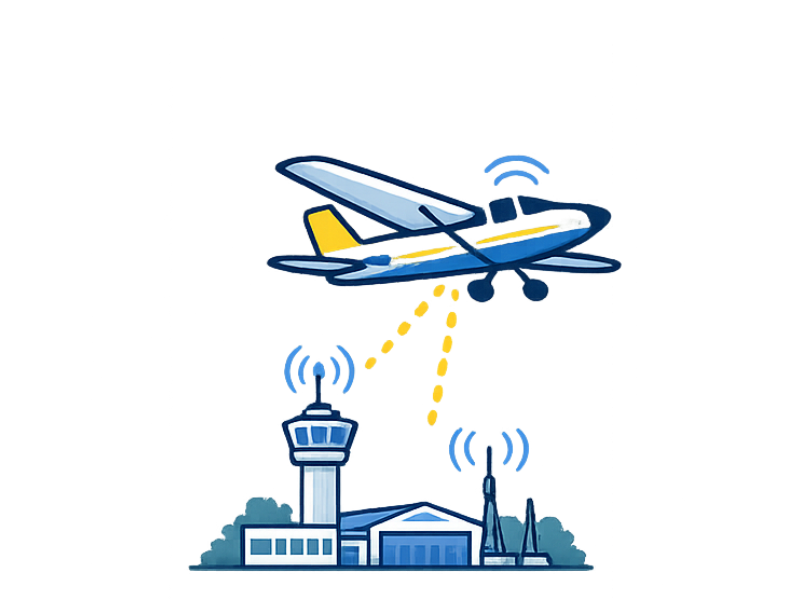

ATOM GRID

Ground Network
‍ATOM GRID is a network of connected ground stations. It supports the distribution of traffic information and rebroadcast services, allowing PilotAware FX to display additional traffic where ground network coverage is available.

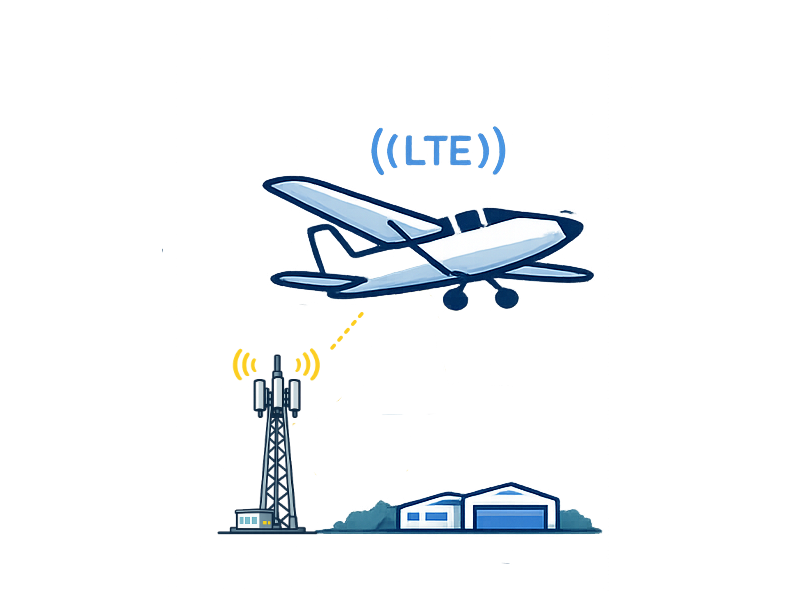

iGRID

Cellular Data
iGRID uses mobile data connectivity through your hotspot or router to deliver supported traffic information to the cockpit. This allows PilotAware FX to receive additional network-supplied traffic data beyond its direct air-to-air reception capability.

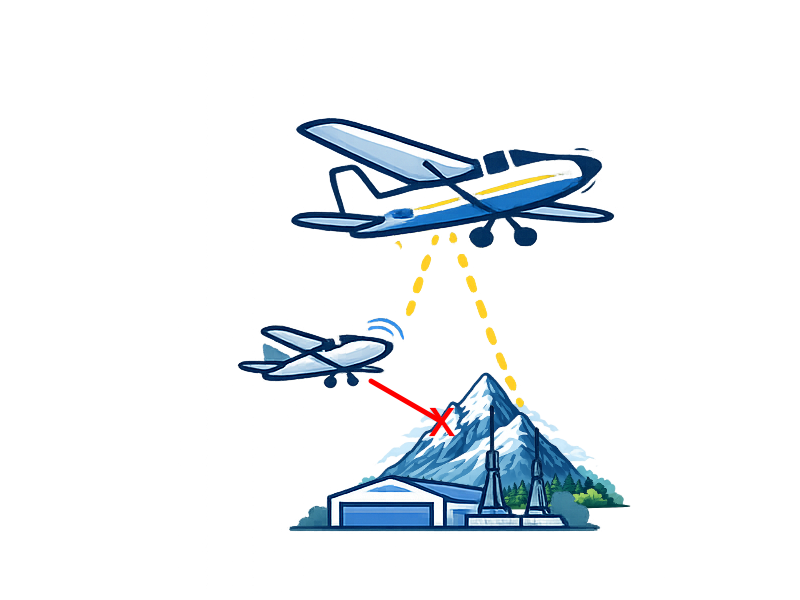

SkyGRID

Airborne Relay
SkyGRID uses high-flying PilotAware-equipped aircraft to rebroadcast traffic information down to lower levels. This helps improve continuity in areas where ground-based coverage may be limited, particularly at low altitude.
Capabilities

More built in than you might expect

PilotAware FX includes a range of practical features designed to make it easier to integrate, easier to use and more capable in everyday flying.

RS232 Serial Output

Feeds selected compatible avionics such as Dynon SkyView, LXNAV and LXNavigation displays.

FLARM Integration

Connect your FLARM to the FX input to use the FLARM GPS and display live FLARM reports directly into your EFB or display through FX.

GPS SIL=0 Output

Connect your Mode-S Extended Squitter transponder to the FX serial output to get SIL=0 ADS-B out, making you more conspicuious.

Live METAR Updates

Live METAR reports from major airports are uplinked to FX through ATOM stations and over iGRID. With an ituitive display running in browser to easily see the conditions at local airfields.

Over the Air Updates

With no need for USBs or SD card the FX can update directly over the phone offline, or if connected to a hotspot, perform over the air software updates without any interaction required.

Profiles (Coming Soon)

A  requested feature coming soon to FX is the abliity to easily switch aircraft in the settings.
Testimonials

More built in than you might expect

PilotAware FX includes a range of practical features designed to make it easier to integrate, easier to use and more capable in everyday flying.

Barbara Blythe

PilotAware FX was an absolute joy to use. Fast GPS lock, accurate traffic alerts, and you can clearly see much more with this unit. This really is a game changing piece of kit.
electronic conspicuity

Ready to choose the right FX for your Aircraft

PilotAware FX is available with different options to suit your aircraft, installation and connectivity requirements. View the product page to choose your setup, see what is included and buy online.
Buy  PilotAware FX

Choose your setup
Select the option that best matches your aircraft and installation.

See what is included
Review the supplied hardware, options and purchase details in one place.

Buy online
Complete your purchase on our shop or with selected distributors.

Technical specifications

Electronic Conspicuity needs good electroincs.

Compact, capable, installation-ready.
📡

Radio

869.525 MHz SRD-860, P3i, ADS-L ready, 1090 MHz ADS-B In

⚡

Power

5V–30V DC, typical 1.5 W, +23 dBm nominal transmit power

▣

Size

116 × 60 × 20 mm, 135 g excluding cables and antennas

⌁

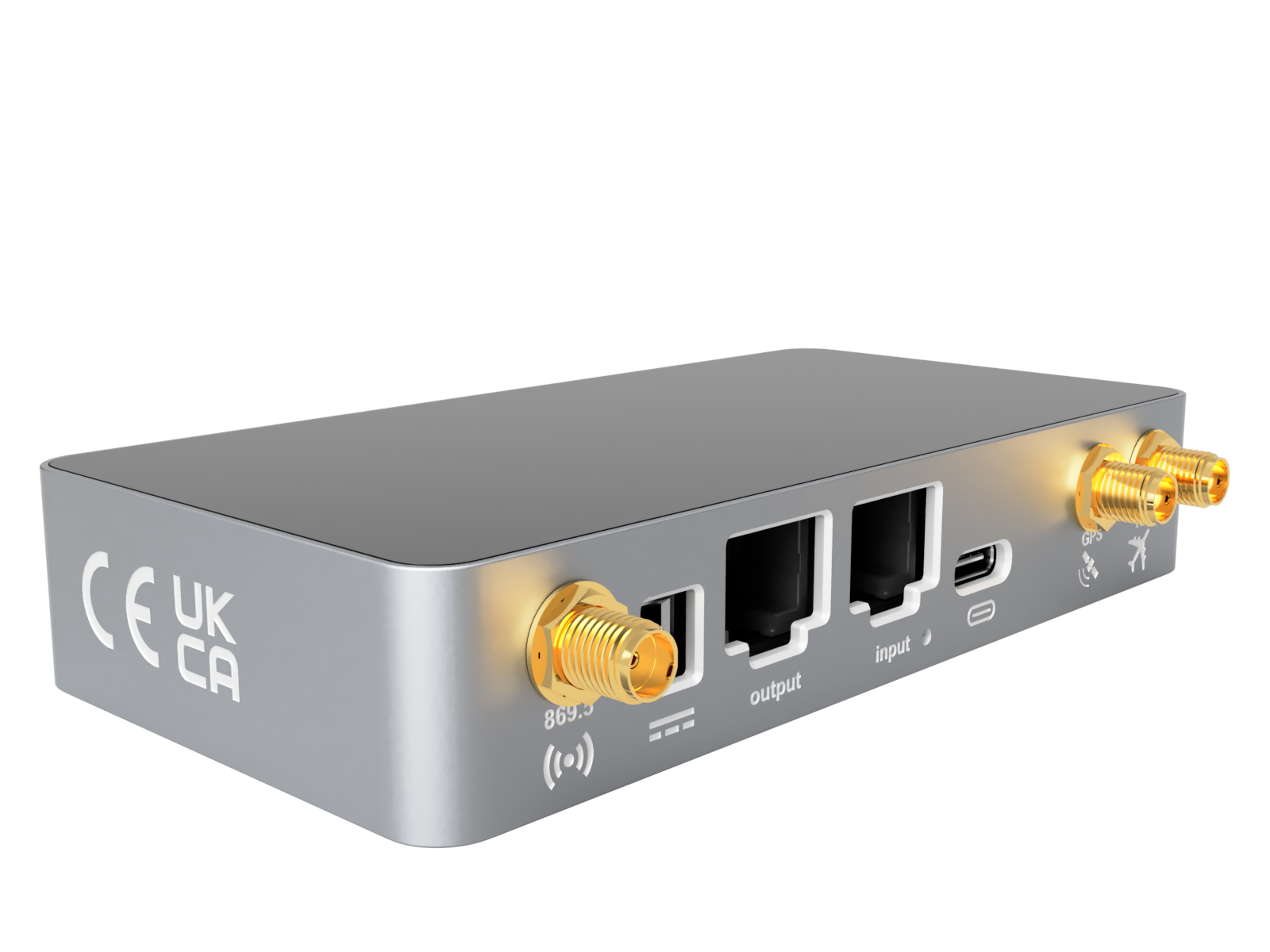

Connectivity

Dual-band Wi-Fi, 2 × RS232, FLARM-compatible serial port

🌡

Environment

-10°C to +80°C, non-condensing

⟂

Mounting

1 × 1/4 inch camera mount, 2 × M5 fixings, A6 template
